Transformers

We offer top-tier products that are built to last, along with personalized support and impeccable service.

1. Oil transformer

A type of transformer that uses oil for both insulation and cooling purposes. It consists of two or more coils made of copper wire that are wound around a magnetic core made of laminated steel. The primary coil is connected to the source of electrical energy, while the secondary coil is connected to the load.

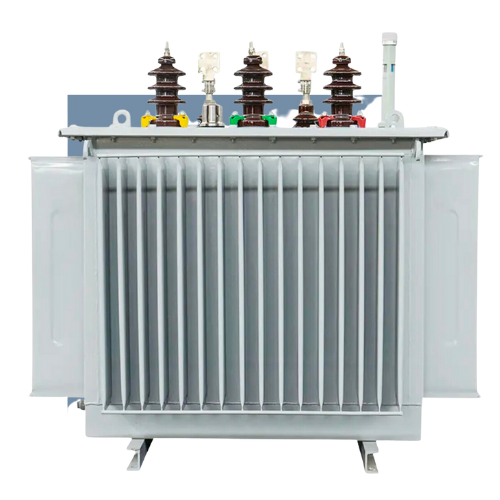

Oil Immersed Power Transformer Product Features:

  • 50KVA to 100MVA capacity, 220V to 220KV voltage Dyn1,
  • Dyn11, Yd11, YyNo, etc. 50.60Hz Low loss,
  • Low noise, High Efficiency, Low-Temperature rise
  • Energy conservation & Environmental protection
  • Long service life, worldwide after-sale service

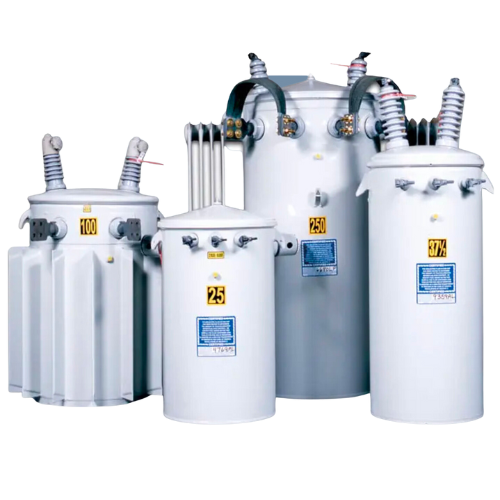

Single Phase Pole Mounted Transformer Product Features:

  • 10KVA to 500KVA capacity, 137V to 34500V voltage
  • 110 vector group, 60Hz, Long service life, worldwide after-sale service
  • Low loss, Low noise, High Efficiency, Low-Temperature rise
  • 2.5/3.0mm thickness tank and cover
  • Two HV bushing, 3/4 LV bushing
A type of transformer that does not use oil or any other liquid as a coolant or insulator. Instead, it employs dry-type insulation, which comprises high-temperature insulation materials like resin, varnish, or epoxy encapsulating the windings. This design eliminates the risk of oil leaks in case of damage to the transformer and makes it less of an environmental hazard than oil-filled transformers.

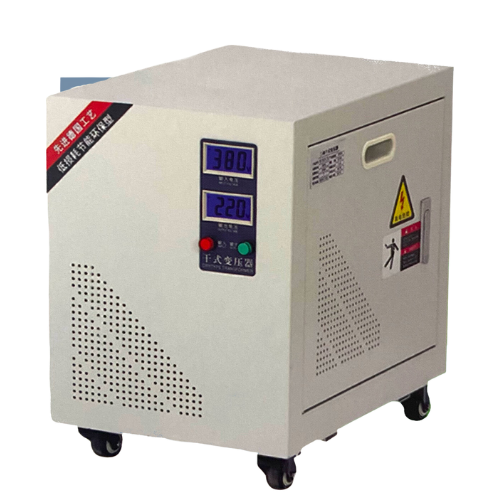

Dry Type Isolation Transformer Product Features:

  • 10KVA to 10MVA capacity, 110V to 34500V voltage
  • Dyn1, Dyn11, Yd11, YyNo, etc, 50/60Hz
  • Low loss, Low noise, High Efficiency, Low-Temperature rise
  • Anti-explosion, Protection Box
  • Long service life, worldwide after-sale service

2. Dry Transformer

3. Pad Mounted Transformer

A type of electrical transformer that is specifically designed to be mounted on a concrete pad or platform. This type of transformer is commonly used for underground power distribution, where it is installed in outdoor locations such as residential neighborhoods, commercial areas, or industrial facilities. Pad-mounted transformers are designed to be weatherproof and are constructed with protective enclosures to shield them from environmental elements and potential damage.

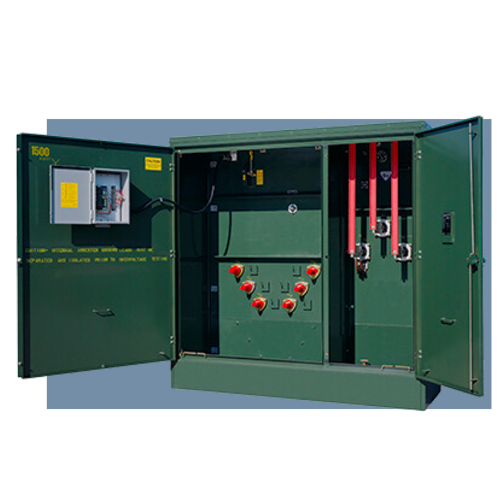

Three Phase Pad Mounted Transformer Product Features:

  • 50KVA to 3150KVA capacity, 237V to 34.5KV voltage
  • Low loss, Low noise, High Efficiency, Low-Temperature rise
  • Loop feed, Radial feed, Dead front
  • HV 200A bushing universal bushing Wells
  • LV bushing Star stud type with 10/12 holes blades

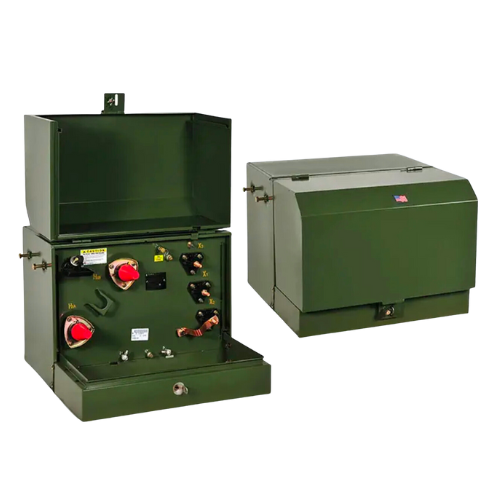

Single Phase Pad Mounted Transformer Product Features:

  • 10KVA to 500KVA capacity, 137V to 34500V voltage
  • 110 vector group, 60Hz, Long service life, worldwide after-sale service
  • Low loss, Low noise, High Efficiency, LowTemperature rise
  • 3.0/4.0mm thickness tank and cover
  • Long service life, worldwide after-sale service
Substation transformers are an integral part of electrical substations, which serve as intermediaries between power generation stations and the distribution network. These transformers play a crucial role in transforming high-voltage electricity from the generation stations into lower voltages suitable for distribution to homes, businesses, and industries.

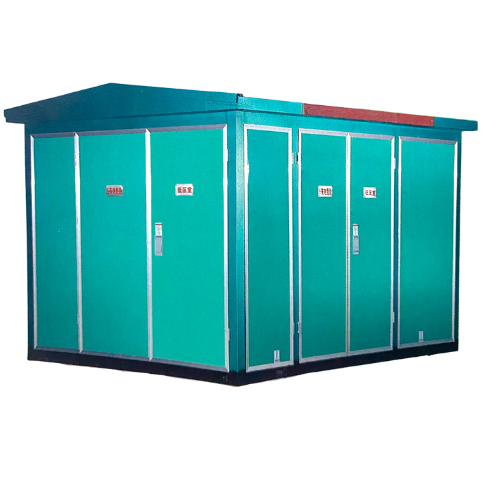

Compact Substation Product Features:

  • 250KVA to 3150KVA capacity, 10 to 34.5KV voltage
  • Low loss, Low noise, High Efficiency, Low-Temperature rise
  • GPRS/SCADA control system, SF6 RMU switchgear
  • Energy conservation & Environmental protection
  • Long service life, worldwide after-sale service

4. Substation Transformers
